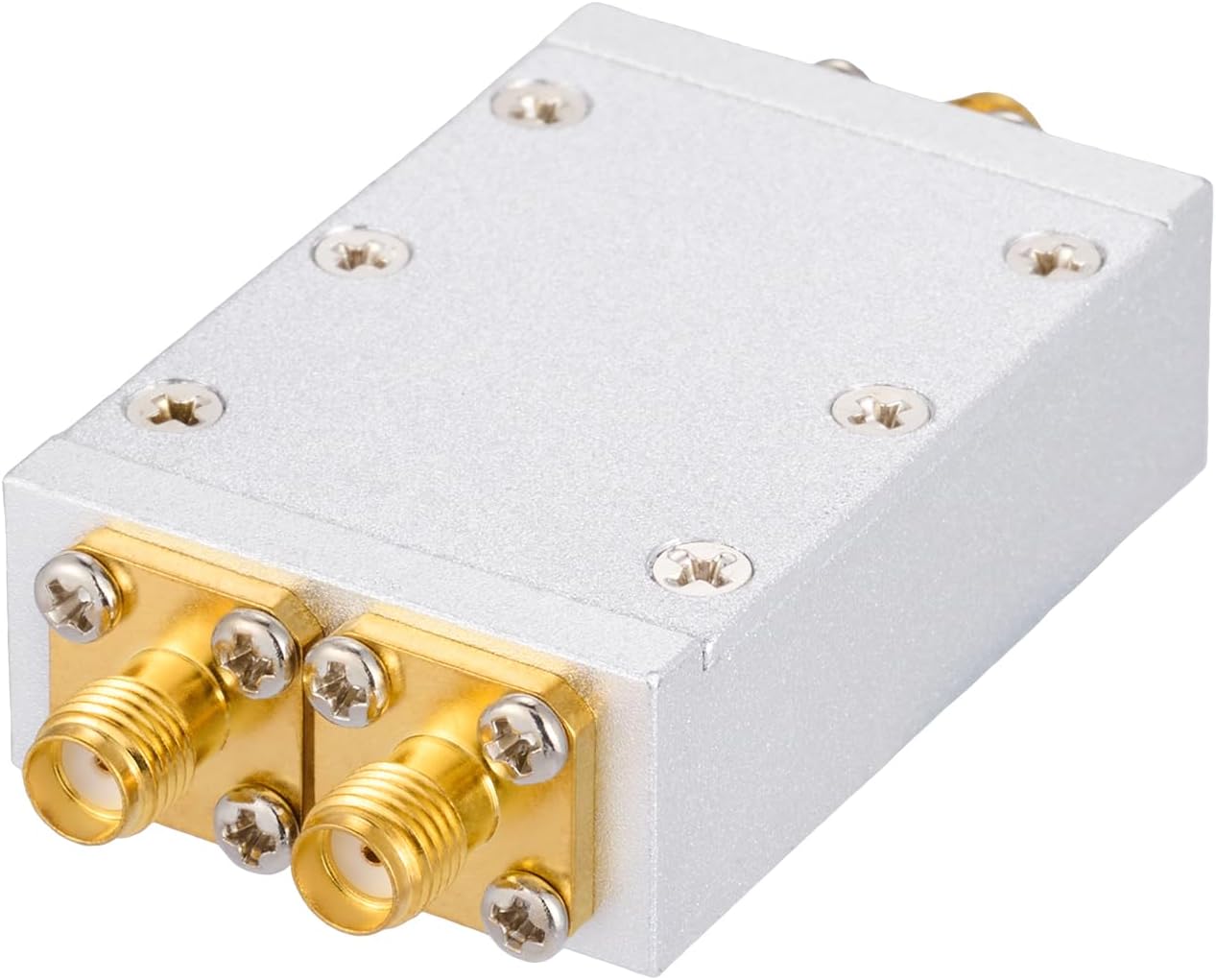

2 Way 0.5-6GHz Power Splitter 50 Ohm SMA Female Connector Signal Splitter 500Mhz-6000Mhz Cable Signal Splitter 1 Input 2 Output for Antenna Cable

Product Details：Product name: 0.5-6GHz SMA female connector 2 way signal splitter Connector port: 1 input and 2 output Output port type: 2 way Connector type(Input): SMA female Connector type(Output 1): SMA femaleConnector type(Output 2): SMA femaleProduct material(Body): Aluminum alloy Connector material: Copper Frequency range (GHz): 500-6000Mhz Inputsertion loss (dB): 4.6-7.4Isolation (dB): ≤20 VSWR: ≥1.19; ≤1.62 Amplitude balance (dB): ≤0.3 Phase balance (°): ≤5 Impedance (Ω): 50 Power capacity (W): 50 Operating temperature (°C): -30～+70 Product dimensions (cm): 6.9*3.2*1.4cm Package: 1 x SMA female 2 way power splitter Weight: 58.6 g

• Product name: 0.5-6GHz SMA female 2 way power splitter 1 input 2 out;
• Connector port: 1 input and 2 output; Output port type: 2 way; Connector type(Input): SMA female; Connector type(Output 1): SMA female; Connector type(Output 2): SMA female; Product material(Body): Aluminum alloy; Connector material: Copper;
• Specification: Frequency range (GHz): 500-6000Mhz; Insertion loss (dB): 4.6-7.4; Isolation (dB): ≤20; VSWR: ≥1.19, ≤1.62; Amplitude balance (dB): ≤0.3; Phase balance (°): ≤5; Impedance (Ω): 50; Power capacity (W): 50; Operating temperature (°C): -30～+70; Product dimensions (cm): 6.9*3.2*1.4cm;
• Applicaion: Provides 2 amplified SMA female output ports for use with cable antenna satellite signal and so on;
• Package: 1 x SMA female 2 way signal splitter(Weight:58.6g).
