UYGALAXY Greenhouse Film Roll Up Motors with Limit Switch (2 Packs) + Transformer Controller Joint Box (AC110V to DC24V) for for Roof Greenhouses Ventilation, Automatic Venting Kit(with Pivot)

The electric roll-up motor for ventilation, which is used extensively in the greenhouse. Such as the solar greenhouse, vegetable greenhouse, cultivation greenhouse, multi-span film greenhouse and other assembled greenhouse, by which to open or close the side windows and top windows through the roll of film.

Useful in Your Greenhouse

[ Roll up motor + transformer controller ] All-In-One kit with wall plug. Automatic agriculture with switches, free your hands and work easier.
[ 100W Power Roll Up Motor ] For top of greenhouse venting, works for OD1-3/8inch top rail roll bar. Roll up film tube length up to 360ft, max height 19ft. DC 24V 2.8RPM electric greenhouse roll up motor.
[ Best for ] Installing on top of the hoop greenhouse, control 2 motors for even venting.
[ Easy Use ] Installing on top of the hoop greenhouse, control 2 motors for even venting. One button to open/stop/close the venting machine, setting the limit switch on hoop house roll up ventilation motors, no second time setting.
[ Wide Use ]  Suitable for breeding greenhouses, chicken coop greenhouses, flower greenhouses, fruit greenhouses.

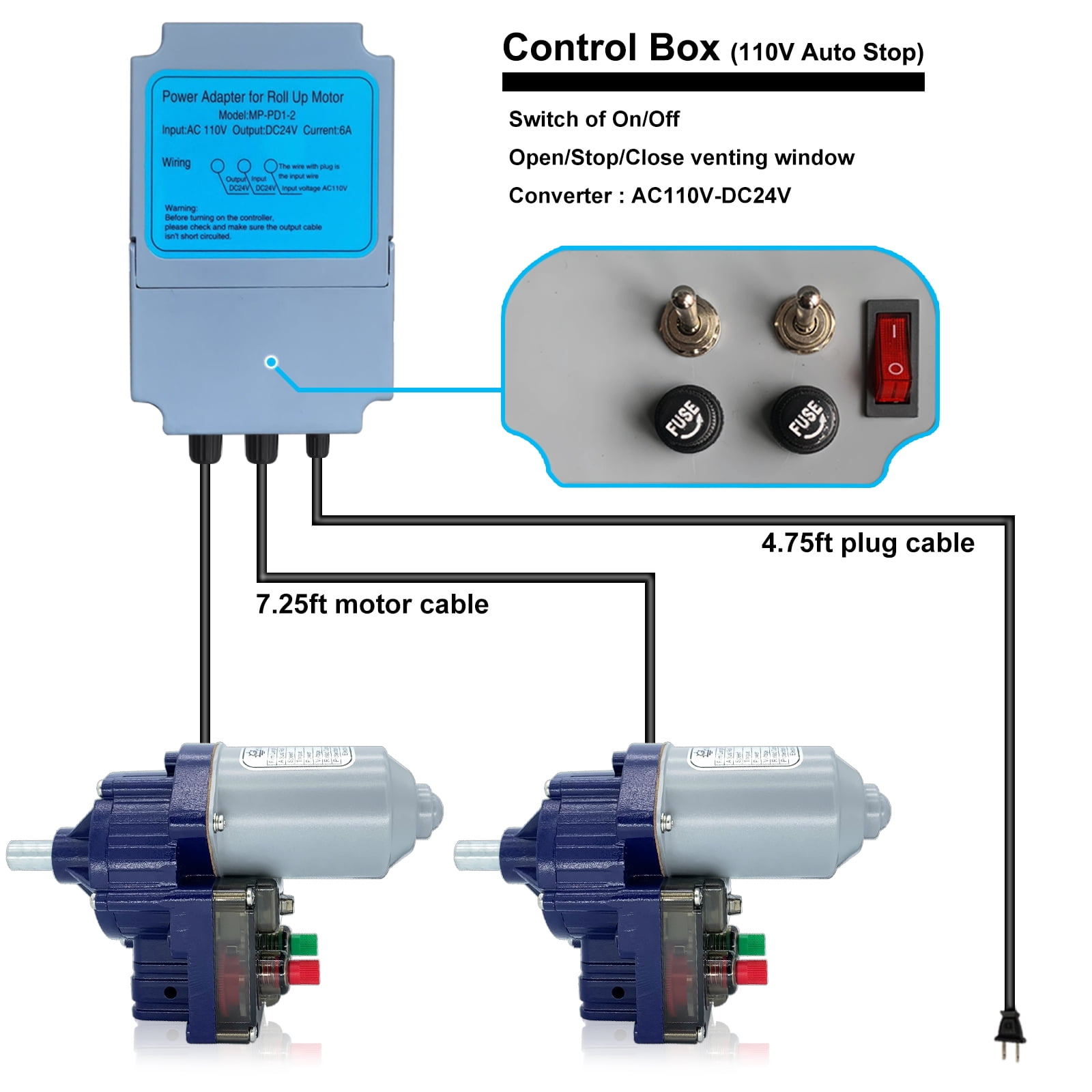

Controller
Input: AC 110V
Output: 2*DC 24V
Drive: 2 channel of DC 24V
Swith1: ON/OFF
Swith2: Open/Stop/Close Window
Knob: Fuse
Plug wire(input): 4.75ft

Roll Up Motor
1. IP 66 waterproof protection class.
2. can be install on the top of greenhouse, and side of the greenhouse(needs creeper).
3. Roll up film tube length up to 360ft ; And 19ft height when OD 1 3/8inch (Outside Diameter 34.9mm) roll up tube .
4. Setting the limit switches on hoop house roll up ventilation motors.


Specifications
Power: 100 watt
Travel Limit: 40 rotations
Voltage: DC 24v
Speed: 2.8rpm
Rated Current: 4.0A
Torque: 80N.m
Protection Class: IP66
Maximum roll bar length: 360ft (110m)
Color: Blue and grey
Package Include:
1* Joint Box(transformer+Controller)
2* Roll Up Motors
1* Manual
4*Roll bar adaptors

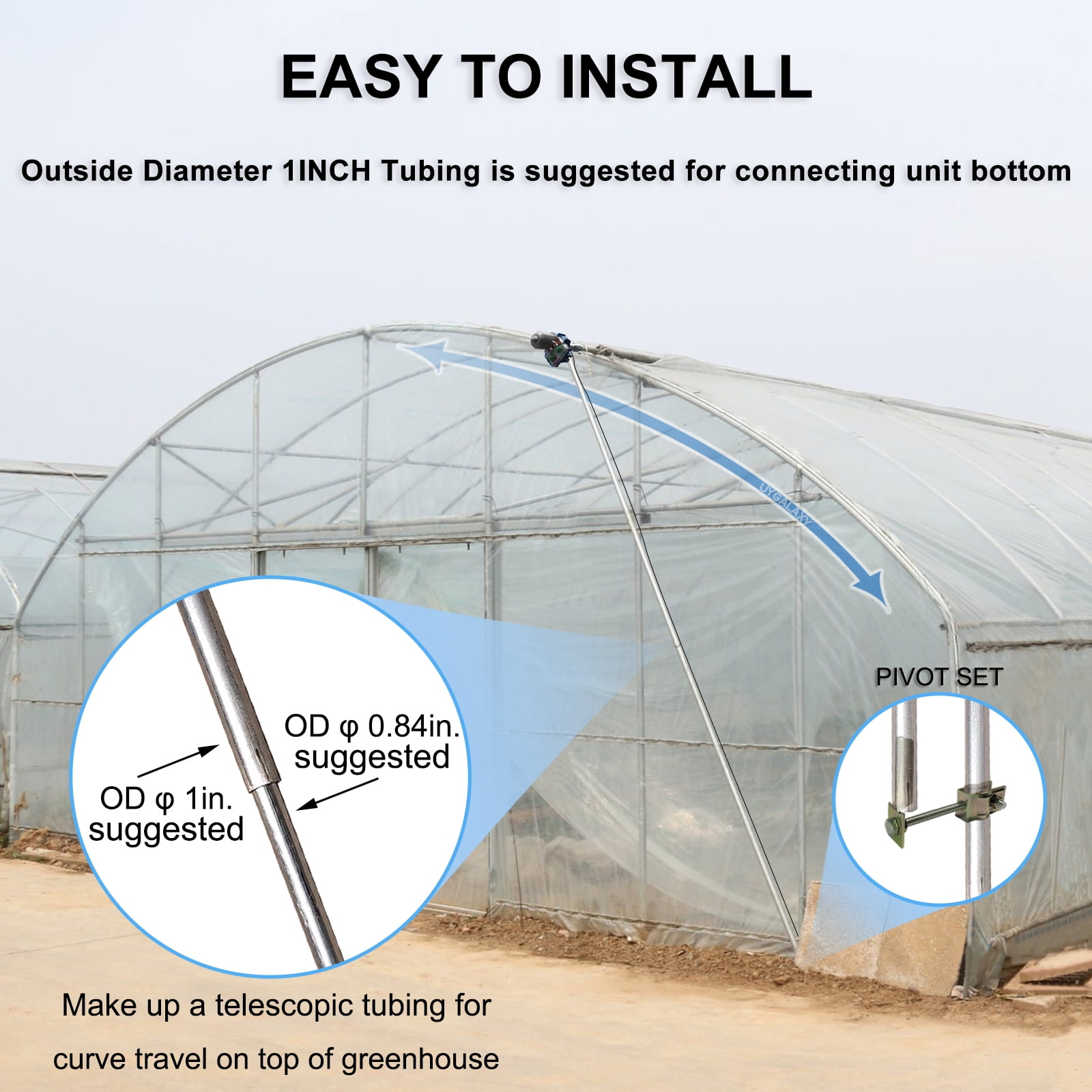

The galvanized tube used for roll bar can be NPS 1inch, DN25mm or 1-3/8inch top rail:

Material selection:

1. It's recommended 16AWG cord if within 164ft from the motors to controller or power.
2. If connect 20 sets of motors to 1 transformer, it is recommended to use 3 AWG aluminum cord or 7 AWG copper cord as the main line to connect to transformer( the motors in parallel.)
3. If 20 electric roll up motors are connected at the same time, it is recommended to use 1600W ~ 2000W transformer.

Greenhouse type	Hoop
Frame material	metal, plastic
Height	7.8 in
Brand	UYGALAXY
Features	Waterproof
Number of vents	2
Rec location	Outdoor
Weight	25.3 lb
Model	1
